Setting Timecode On The DLTX

August 4, 2025

Step-By-Step User Guide

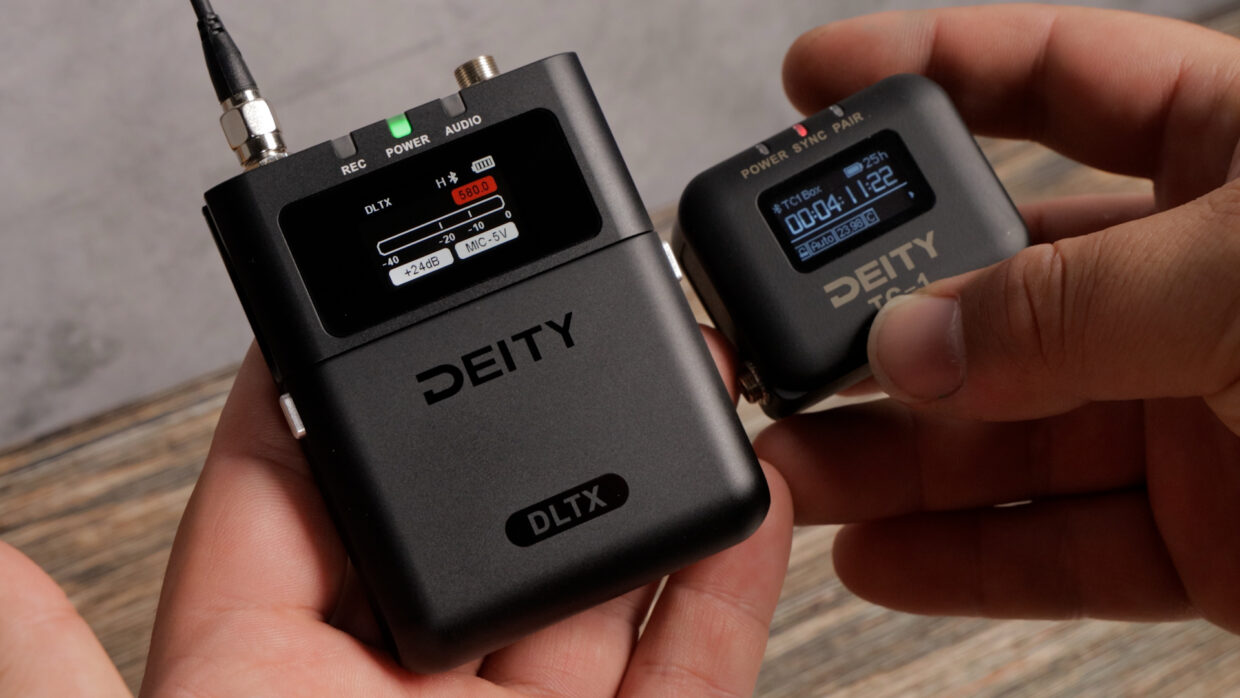

Deity DLTX timecode syncing with a Deity TC-1

Deity Timecode Family

Today, I’ll show you how to set up timecode on your Deity DLTX and all of the syncing modes it offers.

The DLTX features the same timecode abilities as all our devices and follows our easy workflow.

Finding The Timecode Menu

On your DLTX, press the menu button and scroll down to TC Sync.

Here you can control all of your key timecode settings. Mode, frame rate, and channel.

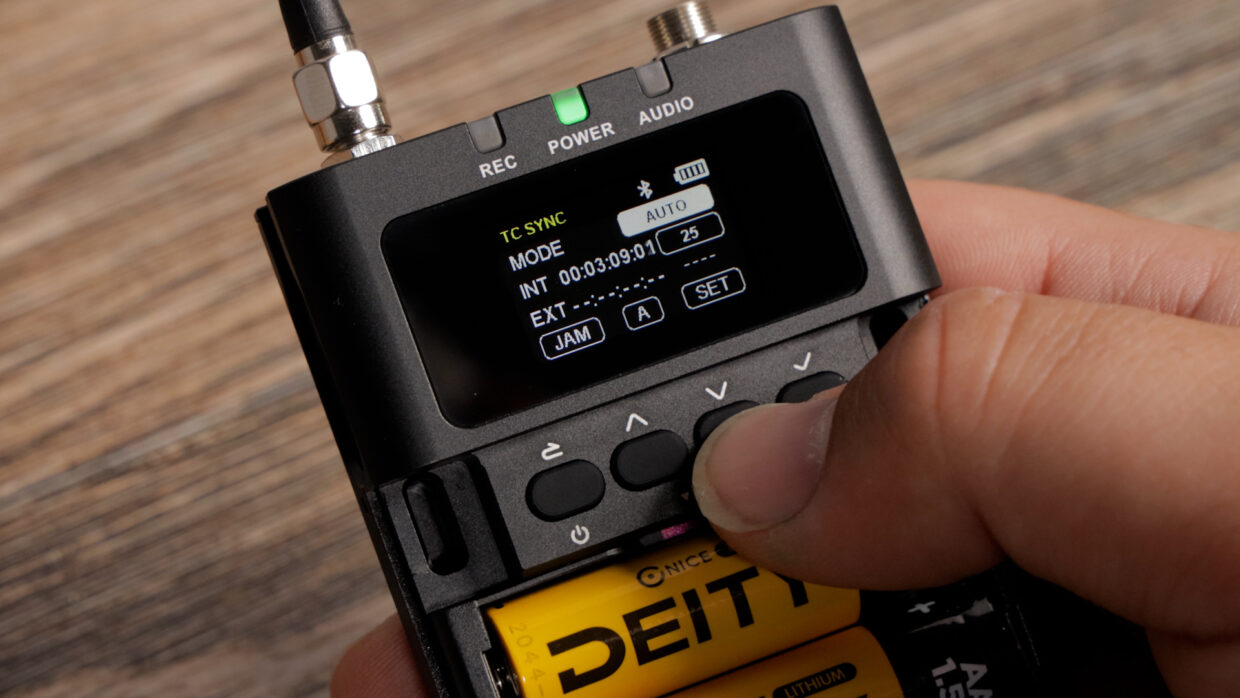

Deity DLTX timecode menu

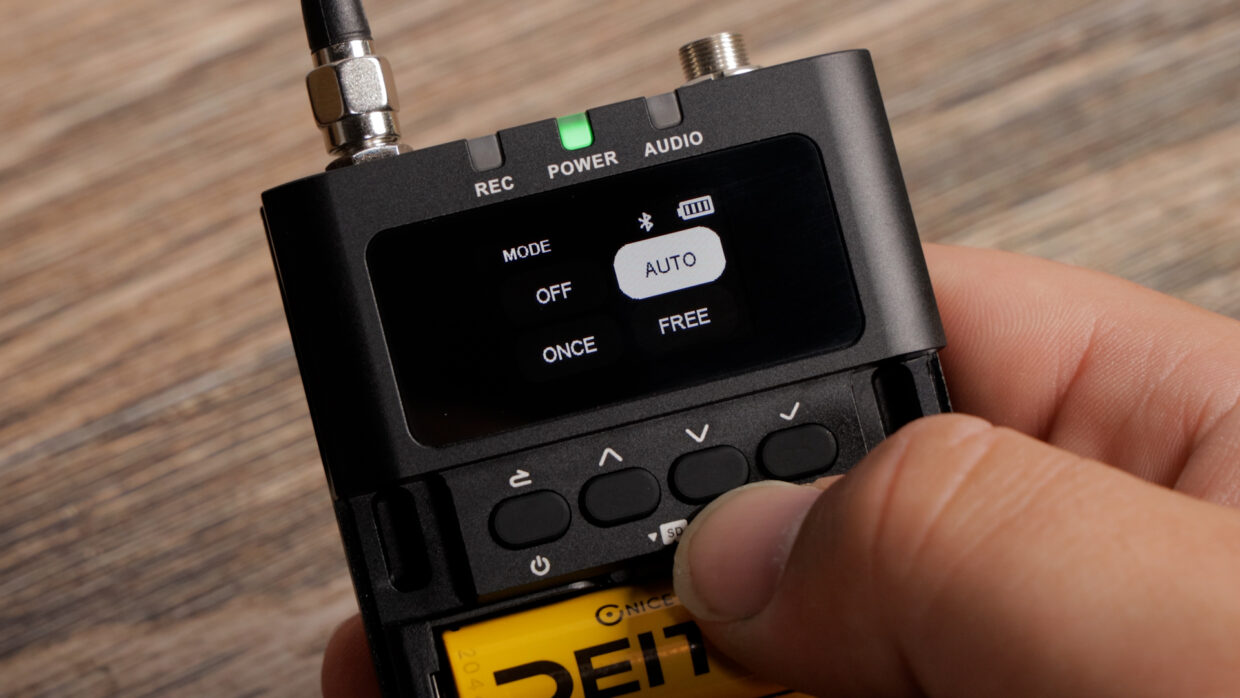

Deity DLTX timecode modes

Timecode Modes

Mode dictates how and when your timecode is activated. Here, you can see there are three modes:

Free, which stands for free-run. In this mode, the unit’s timecode is always running.

Auto, which stands for auto jam. In this mode, the unit can receive timecode from another source via the 3-Pin LEMO or wirelessly from a Deity timecode generator.

Once, which means to jam once, in this mode, the unit is ready to receive timecode from another source but will automatically lock itself off from receiving it again until the DLTX has been power cycled.

Choose Your Master Unit

To get the DLTX in sync with your set, you will first need to pick your master unit.

In this case, I’m using a Deity TC-SL1 set to 24fps on channel A.

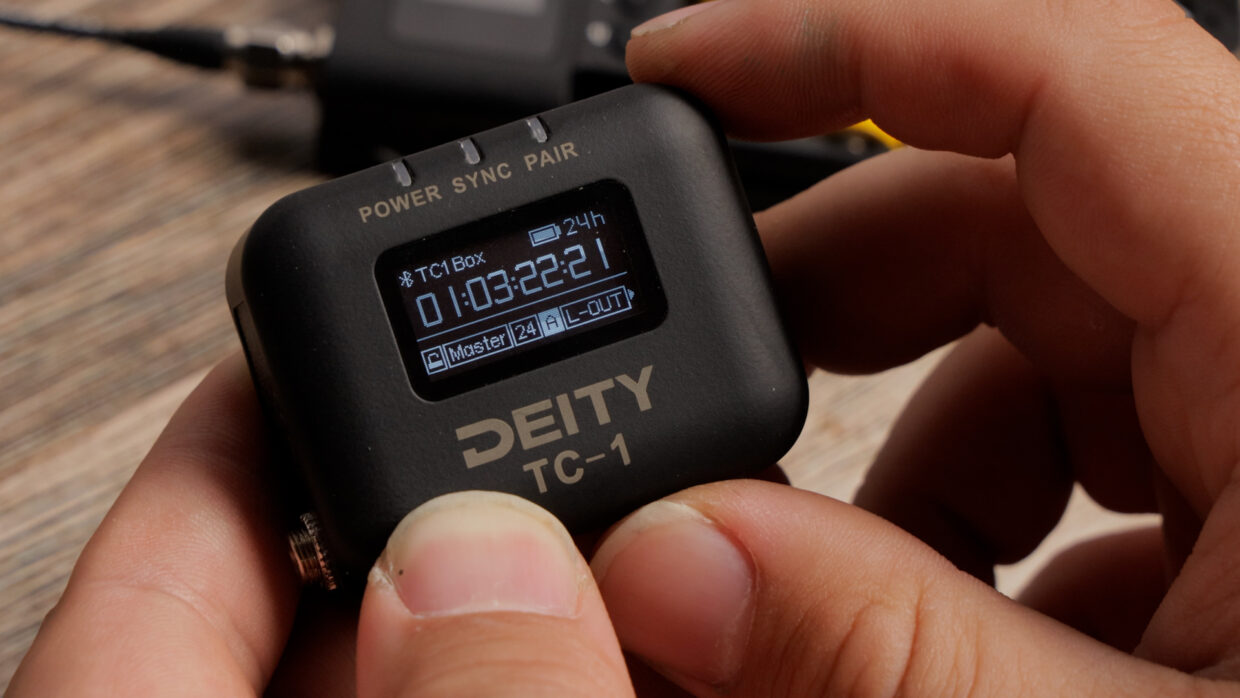

Deity TC-1

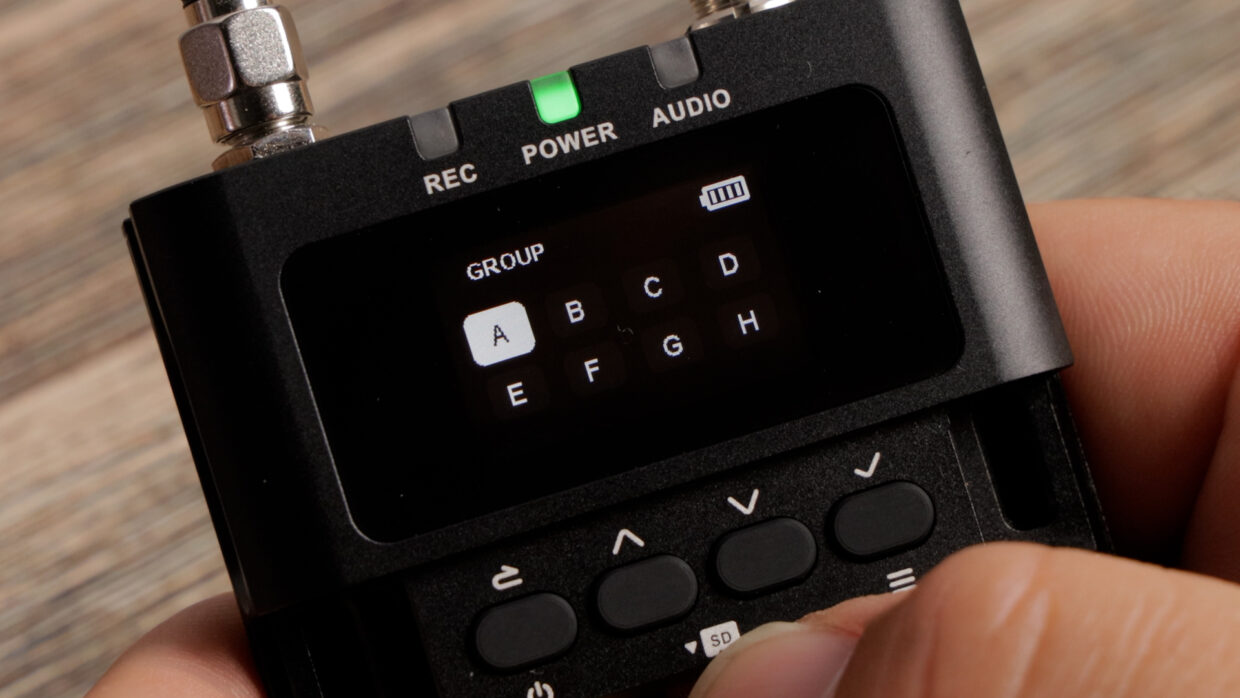

Deity DLTX channel menu

Shooting With Multiple Teams

Knowing what letter channel you’re on is essential so multiple teams in the same area can sync timecode independently.

DLTX Settings

On my DLTX, I mirror my master unit’s frame rate, confirm that the channel is correct, and set the mode to auto.

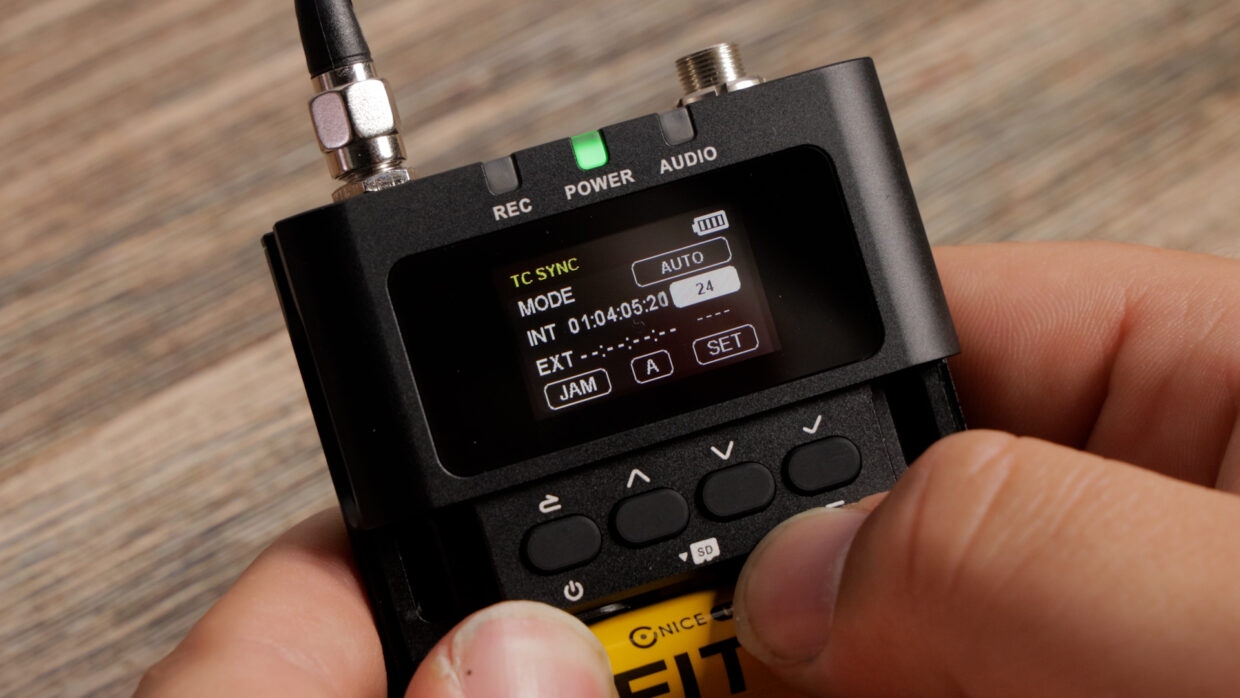

Deity DLTX timecode menu

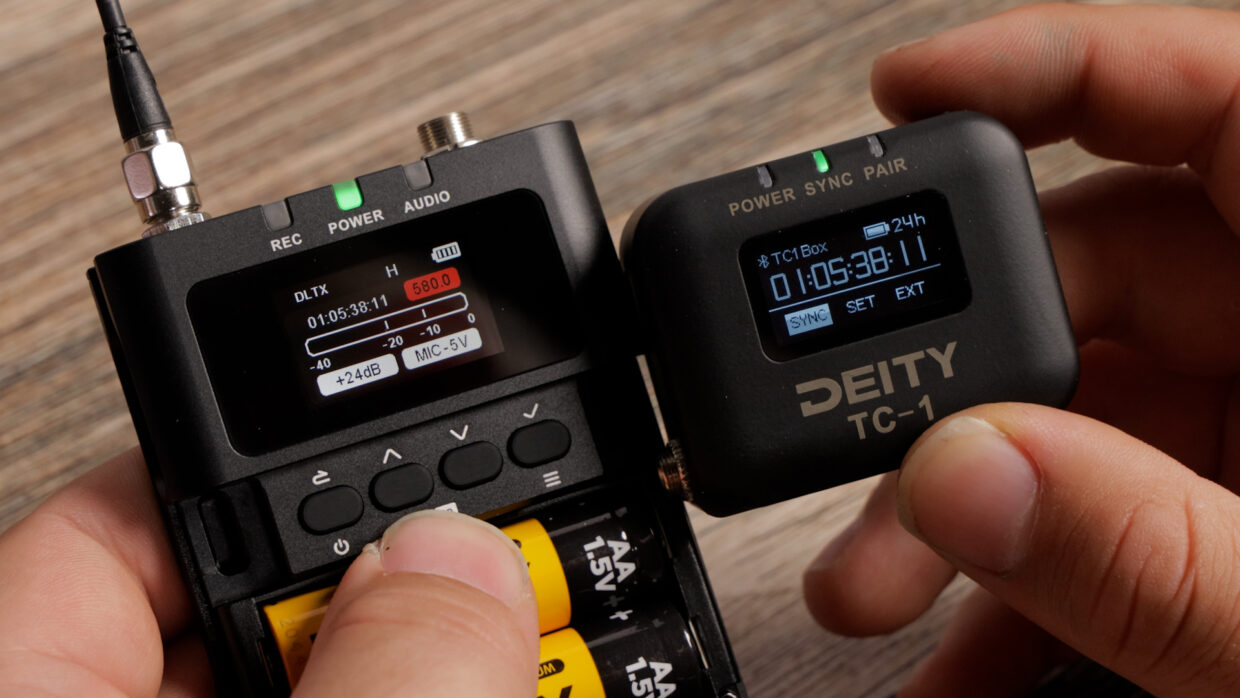

Deity DLTX timecode syncing with a Deity TC-1

Wireless Sync

When I initiate sync from my TC-SL1, the DLTX automatically receives the handshake and gets up to speed.

Sidus Audio App Sync

Alternatively, if both devices are connected to the Sidus Audio app, you’ll see a flashing sync button.

Press it, and this will initiate a sync for all your devices.

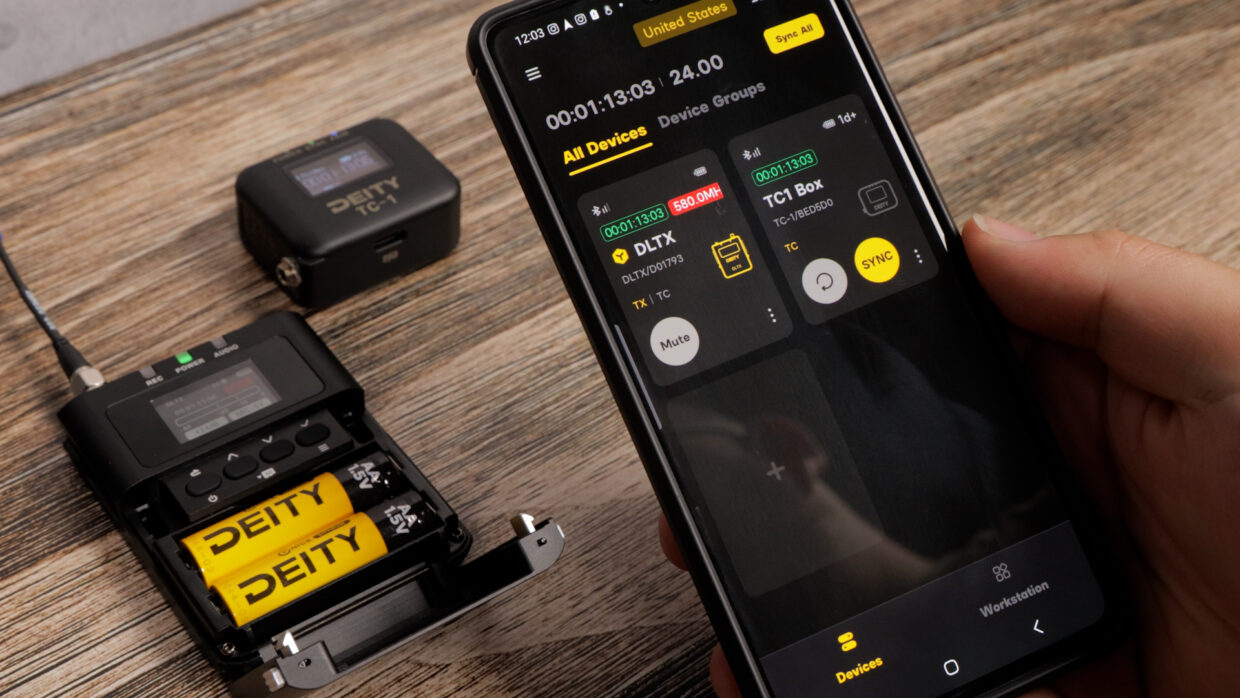

Sidus audio app timecode syncing Deity DLTX and Deity TC-1

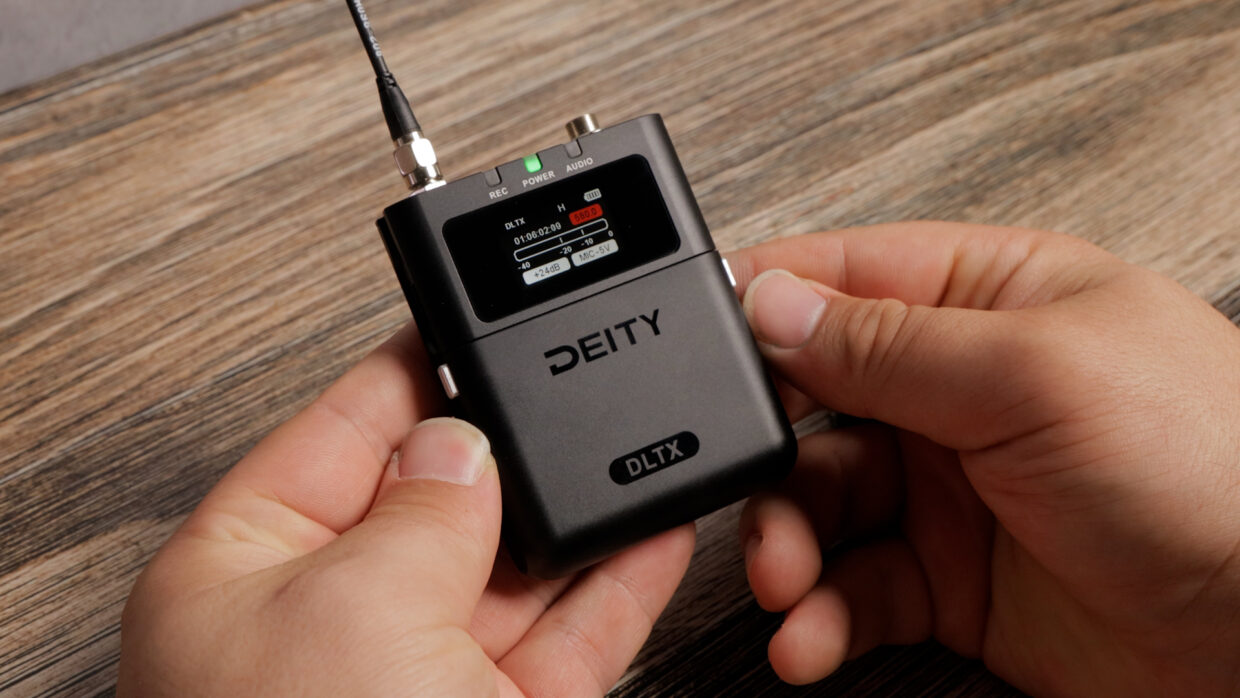

Deity DLTX

You’re In Sync!

Your DLTX is now ready to get recording!

If you need help syncing the DLTX to our Deity TC-1 timecode generators, here is a User Guide!
