Capture the best your XLR microphones have to offer. Transmit and record anywhere.
*Actual frequency band size will be limited to local laws
** Battery life tested at 10mW, Bluetooth Off, Screen Sleep 10 Sec, LED On, Deity Lithium 3000mAh batteries
*** Not for sale in North America
The DXTX can be mounted on a boom pole via it’s unique boom pole mount (sold separately). When paired with the XLR Link cable (sold separately), the DXTX is the perfect boom pole transmitter because of its lightweight nature and external antenna.
Being able to record true 32-bit float means the boom microphone’s audio signal is being recorded in the most RAW format possible.
No one wants to be lazy. But sometimes you physically can’t monitor your recordings. 32-Bit gives you peace of mind that your audio won’t clip or be recorded too low.
Now you can go into post production knowing that you recorded everything, the first time.

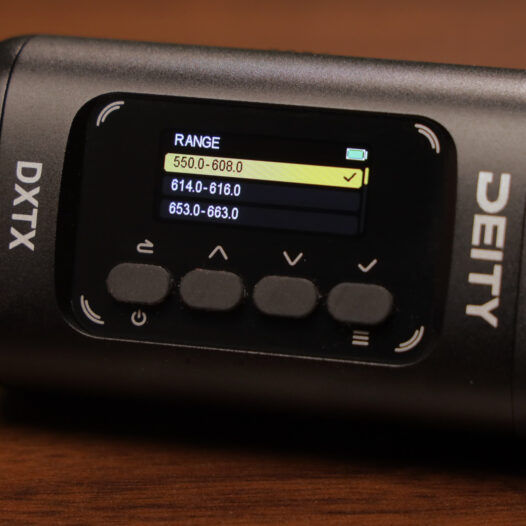

Operate anywhere in the world with the same gear. No more buying single “bands” or “blocks” of wireless gear.
THEOS allows you to use nearly any legal frequency in your country and if you travel, your gear will adapt to the new destinations rules and regulations regarding frequency and RF power.
No longer are you stuck confined to a single “band” of frequencies you’re allowed to use.
XLR TX units are notorious for poor battery life. The DXTX run over 14 hrs with a dynamic handheld microphone.
When pairing the DXTX with lithium AA batteries, the unit is able to run HOURS beyond most needs.
There is so much going on during a shoot that “giving up control and having 100% faith” in your audio recorder is too much of a gamble.
Having a large color screen means you can rest assured that you know exactly what is going on during your production.
Life can get loud but that’s no excuse for clipped and distorted audio.The DXTX features a built-in analog limiter that prevents loud sounds distorting the 24-bit transmission signal.
Now the transmitted audio will sound just as good as the on-board 32-bit float recording.
At 50mW, the DXTX is able to transmit over 150 meters easily. Internal testing shows that our wireless is capable of transmitting 100 meters even at 20mW.
The DXTX matches wireless equipment 500% more expensive.
Sync your audio in mere seconds with your other media sources.Waveform syncing is… fine. But when your subject is further than 15 ft away, the very speed of sound now affects your lip sync.
Timecode means you’re always going to be bang on with your sync at the start of every clip.
The app allows you to perform frequency scanning and frequency assignment, frequency coordination between multiple receivers, gain staging, and remote triggering of the backup recorder. This means you can make adjustments to your audio settings without having to physically touch the device, making it easier to work with when you're on set.
The remote control feature is especially useful for filmmakers who need to work with multiple devices or those who need to make adjustments to their audio settings quickly. It saves time, and it ensures that you never miss a critical moment on set.
Depending on your frequency choice, you'll need to cut your antenna to an exact length. Luckily, we've got a tutorial walking through this process.
Record The Best Audio At The Source
RF Modulation | Proprietary Digital RF Modulation |
RF Freq Ranges | According to different regions, the legitimate frequency bands in line with local conditions are allocated |
RF Frequency Step | 100kHz |
RF Bandwidth | 200kHz |
Minimum Frequency Interval | 700kHz |
Antenna Connector | 50Ω SMA |
Power Output | 10/25/50/100mW-Software Select (varies by regulation) |
Dynamic Range | 105dB |
Distortion | <0.5% |
Frequency Response | 20~20kHz |
Low Cut | 0FF/75Hz/100Hz/150Hz |
Mic Power | MIC-5V,MIC-48V,LINE |
Mic Connector | XLR 3Pin / XLR 5Pin |
Input Gain | 0~+42dBu |
ADC Bit-Depth | 2x 24 bit |
ADC Sampling-Rate | 48KHz |
Timecode Reader/Generator | |
Clock Accuracy | 0.15 PPM (1 Frame in 72 Hours) |
Timecode Type | LTC(SMPTE) |
Timecode Frame-Rates | 23.98, 24, 25, 29.97, 29.97DF, 30 |
Internal Recording | |
Media | MicroSD Card (Flash Memory) |
File Format | .WAV |
Sample Rate | 48kHz |
Record Format | 24 / 32bit float |
Power | |
Battery Type | AA×2 |
Battery Life (48V DEITY AA) | 8h+ |
Physical | |
Dimensions(HxWxD) | 119x44.8x42mm |
Weight | Without battery and antenna: 190g Without battery and with antenna: 196g With battery and antenna: 228g |
Operating Temperature | -20℃~45℃(-4°F~113°F) |
